Description

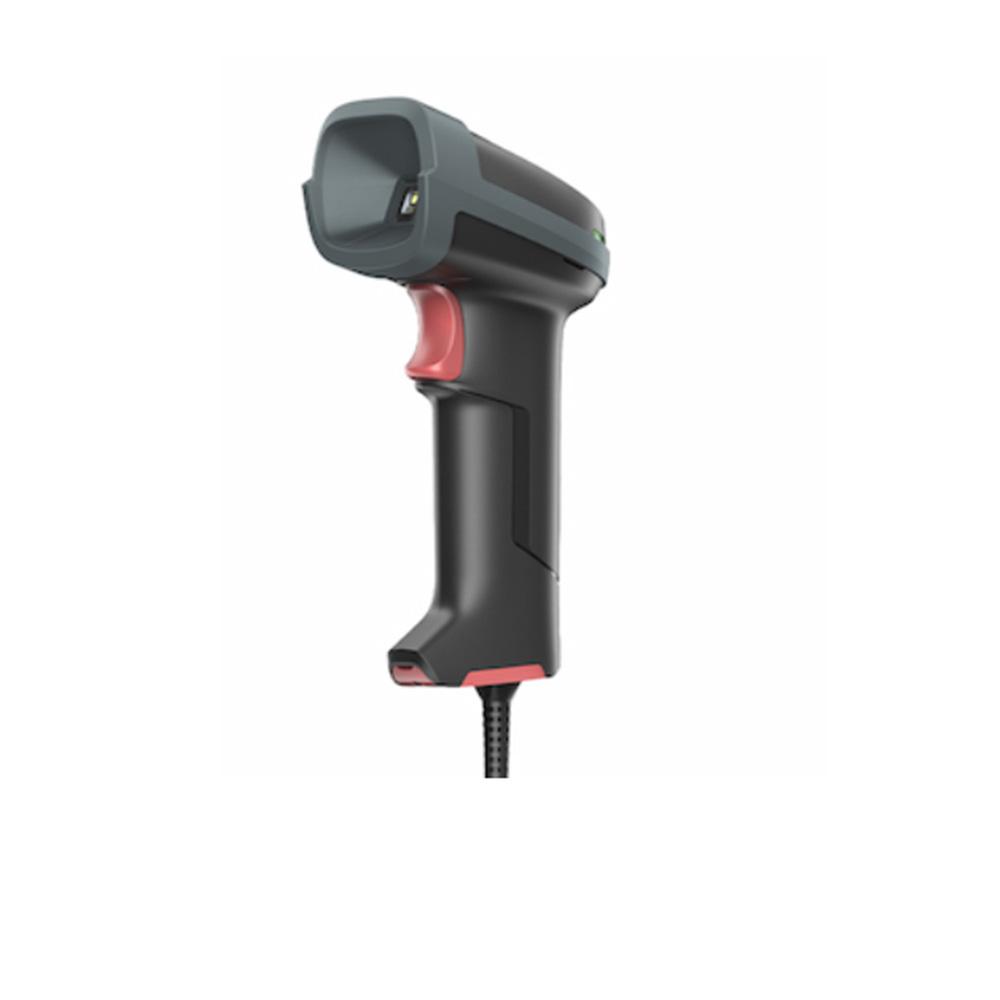

The Syble XB-D15RB 2D Wireless Handheld Barcode Scanner—globally tracked under the primary manufacturer model configuration and inventory code XB-D15RB—is a high-efficiency multi-mode data capture terminal. Built with a thick >3mm ABS chassis encapsulated in shock-resistant protective soft rubber, it relies on advanced area-imaging CMOS technology to rapidly process codes across retail, logistics, and warehousing applications.
Quick Specification :
| Feature Category |
Key Technical Data Point |
| Model & Core SKU |
Brand Model: XB-D15 series | Primary Factory SKU: XB-D15RB |
| Sensor Technology |
640 × 480 Pixels Global Architecture CMOS Area Imager |
| Dual Wireless Modes |

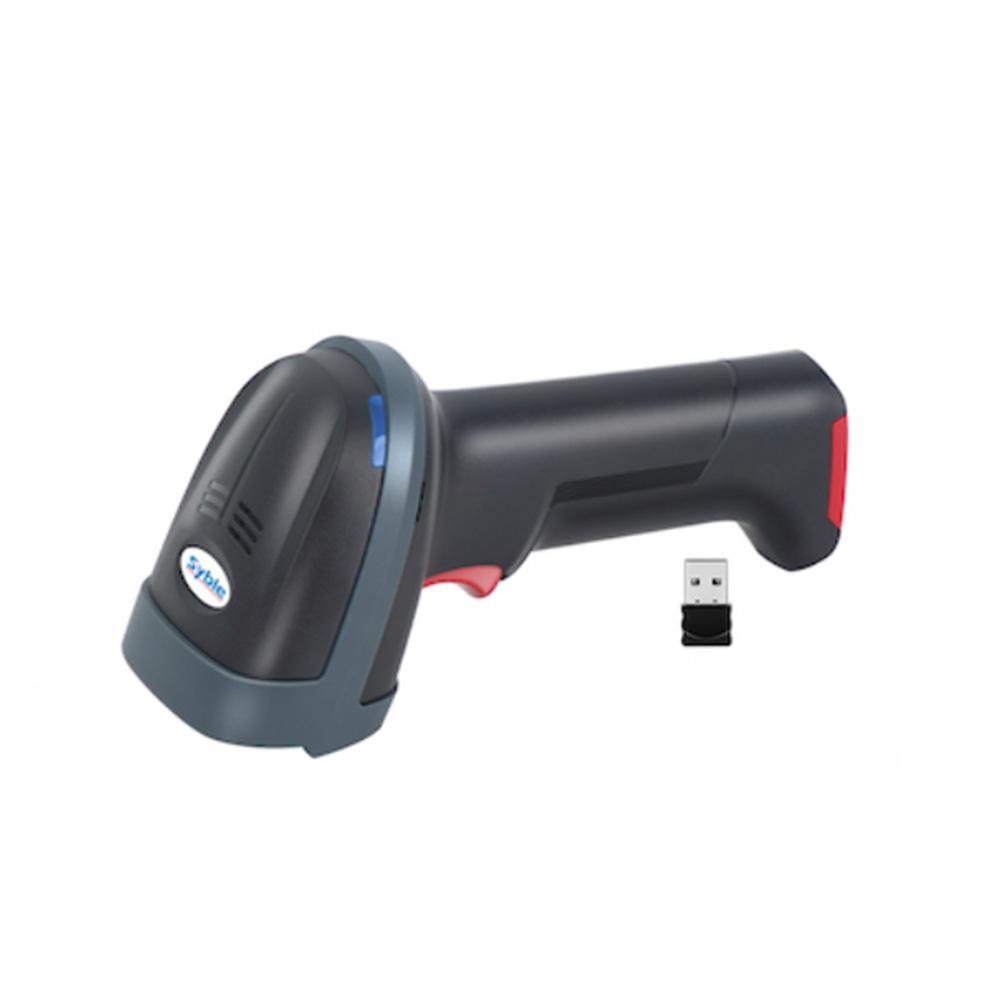

Dual-Mode: 2.4GHz Wireless USB Dongle receiver + Bluetooth wireless |
| Transmission Range |
30m–50m (Bluetooth mode) to 100m (2.4GHz Line-of-Sight open environment) |
| 2D Symbologies |
QR Code, MicroQR, Data Matrix (ECC200), PDF417, Aztec |
| 1D Symbologies |
EAN-13, UPC-A/E, Code 128, Code 39, Code 93, Interleaved 2 of 5 |
| Screen Reading |
Seamlessly decodes barcodes off reflective smartphone LCD/LED screens |
| Scan Trigger Modes |
Manual Trigger Click | Automatic Inductive Motion Sensing scanning |
| Data Memory Cache |
Integrated offline inventory storage (Stores scans during data dropouts) |
| Battery Infrastructure |
Internal 2200 mAh High-Capacity rechargeable Lithium power cell |
| Power Endurance |
Up to 10 Hours of continuous scanning runtime (~36,000 active decodes) |
| Chassis Durability |
Thick >3mm Pure ABS + Rubber casing built to survive 1.5m drops to concrete |
| Trigger Switch Life |
Heavy-duty physical mechanical button rated for >5 Million continuous clicks |
| Physical Stature |
Profile Dimensions: 70 × 81 × 174 mm | Weight: Ultra-lightweight layout |
