Description

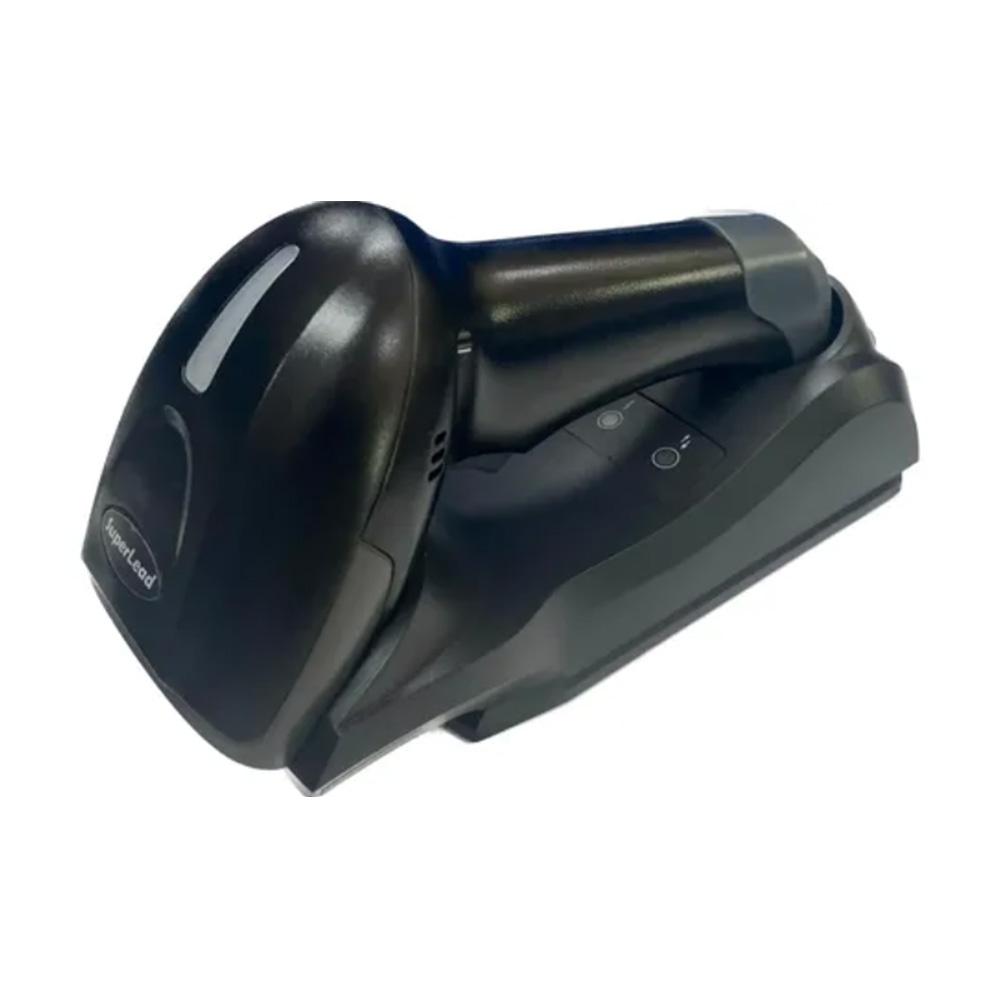

The SuperLead 5203 2D Handheld Handsfree Barcode Scanner—globally tracked by the manufacturer under the structural model number 5203 —is a high-performance imaging code scanning gun. Built with an advanced global shutter camera chip, it provides high-speed automated decoding optimized for aggressive retail and logistics workflows.
Quick Specification :
| Feature Category |
Key Technical Data Point |
| Model & Core SKUs |
Brand Model: SuperLead 5203 Series | SKUs: SL-5203-USB (Wired) / 5203BT (Bluetooth) |
| Sensor Technology |
0.3-Megapixel Global Shutter Area Imager (640 × 480 pixel CMOS grid) |
| Motion Tolerance |
High-velocity tracking mechanism adjusting up to 2 Meters/Second (2m/s) |
| Aiming & Light Source |
Dual Triangular 617nm LED Aimer + 625nm LED operational illumination |
| 2D Symbologies |
QR Code, MicroQR, Data Matrix (ECC200), PDF417, MicroPDF417, Aztec, Hanxin |
| 1D Symbologies |
UPC/EAN, Code 128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5 |
| Minimal Resolution |
High-density scanning accuracy down to ≥ 3.13 mil limits |
| Operational Modes |
3-Way: Normal mode, Mobile Phone Screen mode, Fast Moving mode |
| Chassis Shielding |
IP54 Dust-tight & Splash-proof certification standard |
| Drop/Impact Rating |
Designed to survive multiple structural 1.5m (5ft) drops onto concrete |
| Interface Ports |
Multi-Interface: Reversible USB (HID Keyboard / Virtual COM) and RS232 Serial |
| Physical Stature |
Compact shell profile: 170 × 70 × 95 mm | Ultra-lightweight build at 126g |
