Description

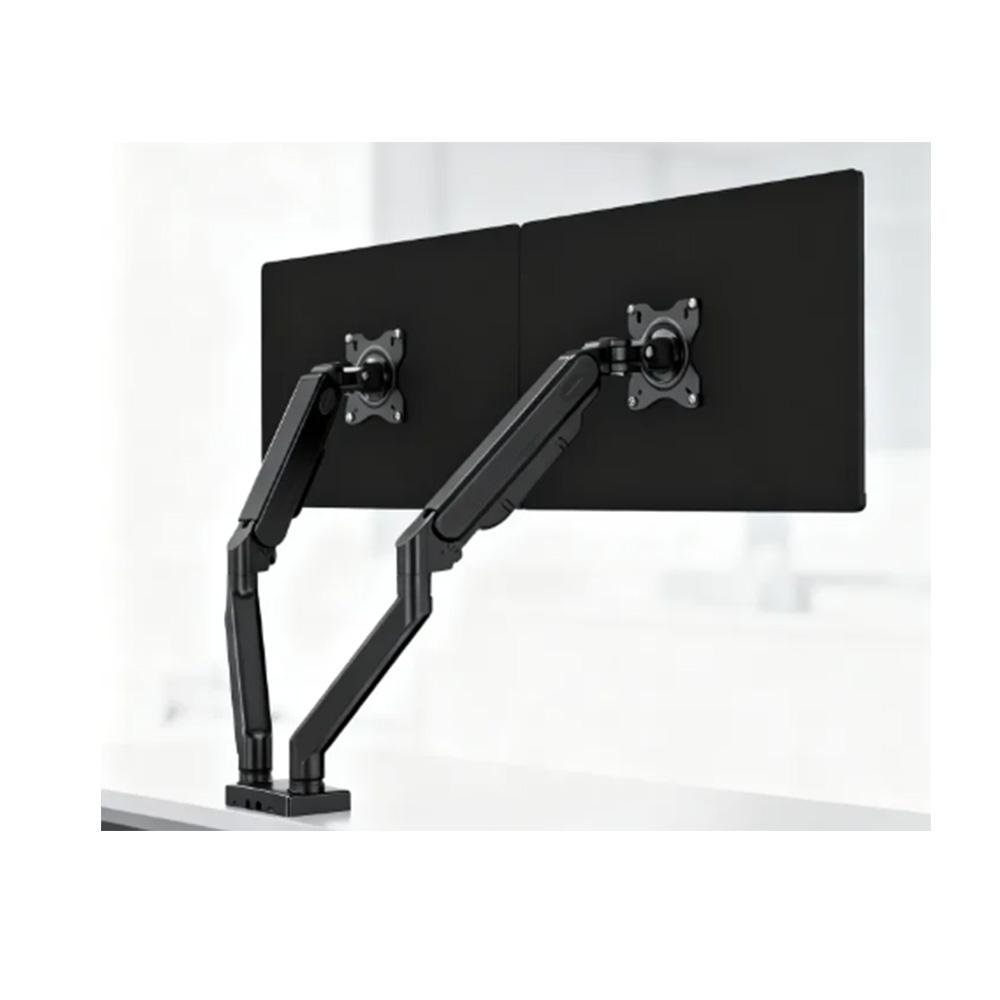

The Fantech WorkStation MBD1 ProMount Dual-Arm Monitor Bracket—tracked under the standard manufacturer SKU MBD1 —is a premium ergonomic multi-display mounting system. Built with a rugged structural aluminum alloy and reinforced steel core, it features premium counterbalance components to optimize dual-screen multitasking setups.
Quick Specification :
| Feature Category |
Key Technical Data Point |
| Model & Core SKU |
Brand Model: WorkStation ProMount MBD1 | Base SKU: MBD1 (Black) |
| Arm Configuration |
Dual-Arm Independent Articulating Structure |
| Lift Mechanism |
Internal Premium Gas Piston Counterbalance Spring |
| Screen Compatibility |
Holds two screens ranging from 13″ up to 32″ in size |
| Weight Capacity |
2 kg to 9 kg (4.4 to 19.8 lbs) maximum load capacity per arm |
| VESA Plate Patterns |
Universal detachable layout: 75×75 mm and 100×100 mm standards |
| Articulating Range |
Screen Tilt: -60° to +90° | Rotation: 360° Pan-Portrait alignment |
| Height Adjust Range |
160 mm to 460 mm independent vertical travel height |
| Desk Base Mounting |
Dual-Option: Heavy-Duty C-Clamp or Thru-Desk Grommet Mount |
| Supported Desk Depth |
Fits surface thicknesses ranging from 15 mm up to 80 mm |
| Cable Management |
Integrated slide-on snapping cable tracks under both segments |
