Description

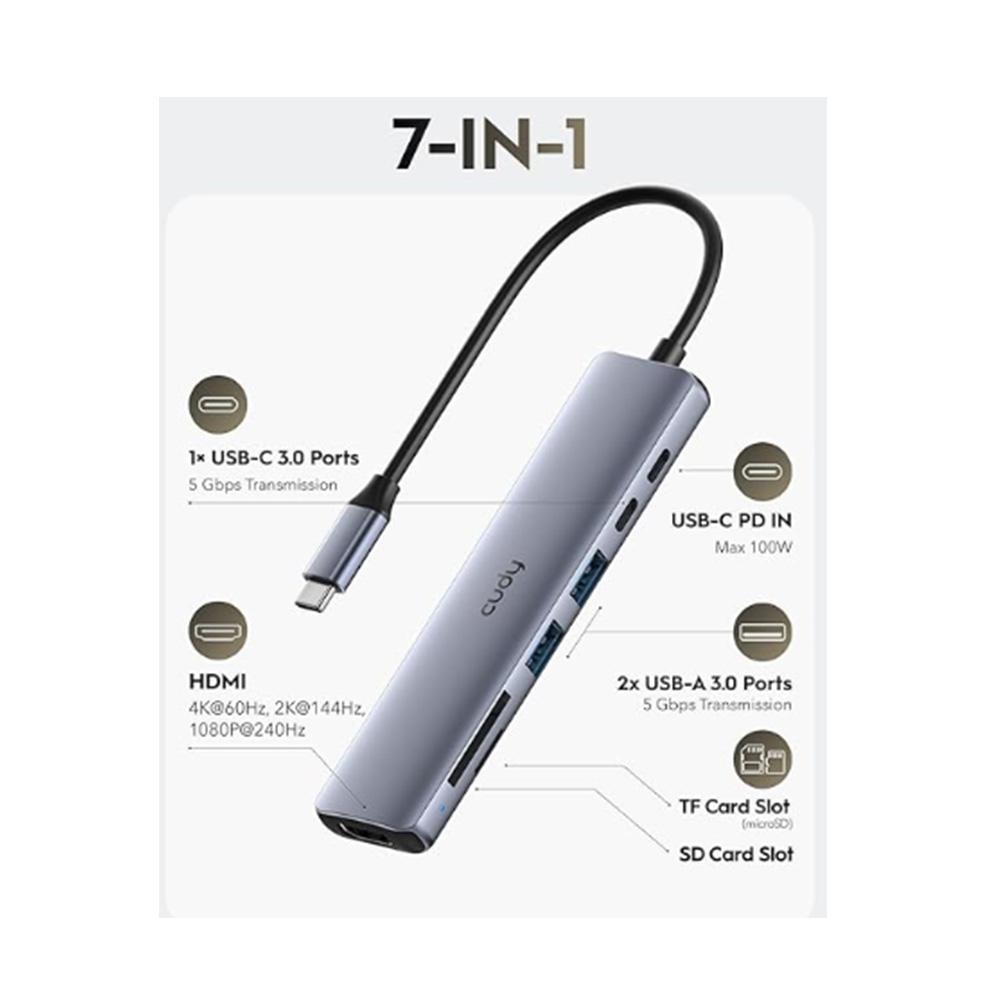

The Cudy UH407 7-in-1 HDMI SD/TF 4K USB-C Hub—globally tracked by the manufacturer under the structural model name UH407 and distribution inventory SKU CD-UH407—is a high-performance, multiport expansion adapter. Wrapped in a premium aluminum alloy housing engineered for optimal heat dissipation, it converts a single USB-C or Thunderbolt port into a complete multi-peripheral workstation hub.
Quick Specification :
| Feature Category |
Key Technical Data Point |
| Model & Core SKU |
Brand Model: UH407 (Version 1.0) | Global Retail SKU: CD-UH407 |
| Host Connection |
1x Upstream USB-C 3.2 Gen 1 Male attached via 25cm integrated cable |
| Video Outputs |
1x HDMI 2.0 port with high-resolution frame mapping |
| Video Resolutions |
4K (4096×2160) @ 60Hz | 2K @ 144Hz | 1080P @ 240Hz frame rates |
| USB Data Ports |
1x USB-C 3.2 Gen 1 (5 Gbps) + 2x USB-A 3.2 Gen 1 (5 Gbps) slots |
| Card Expansion |
1x SDXC Slot (250 Mbps) + 1x MicroSD/TF Slot (250 Mbps) |
| Power Delivery |
1x Dedicated USB-C port supporting 100W PD pass-through inputs |
| Chassis Framework |
Industrial Aluminum alloy outer shell with premium ABS detailing |
| System Drivers |
100% Driver-Free architectural design (True instant Plug-and-Play) |
| OS Compatibility |
Windows 11/10/8/7, macOS, Linux, iPadOS, iOS, Android, Nintendo Switch |
| Dimensions & Mass |
Main body sizing: 130×32×11 mm | Lightweight layout weighing 64 grams |
