Description
The 50M Wireless HDMI Extender Kit (Transmitter & Receiver)—universally cataloged under core industrial manufacturing SKUs like WHD-50M —is a high-performance audio/video wireless transmission system. Built with a dual-antenna configuration and a standalone hardware compression chipset, it eliminates the need to run messy long-distance HDMI cables across home theaters, meeting rooms, or classrooms.
Quick Specification:
| Feature Category |
Key Technical Data Point |
| Model & Core SKU |
Product Model: 50M Wireless Extender | Standard SKU: WHD-50M |
| Hardware Core Kit |

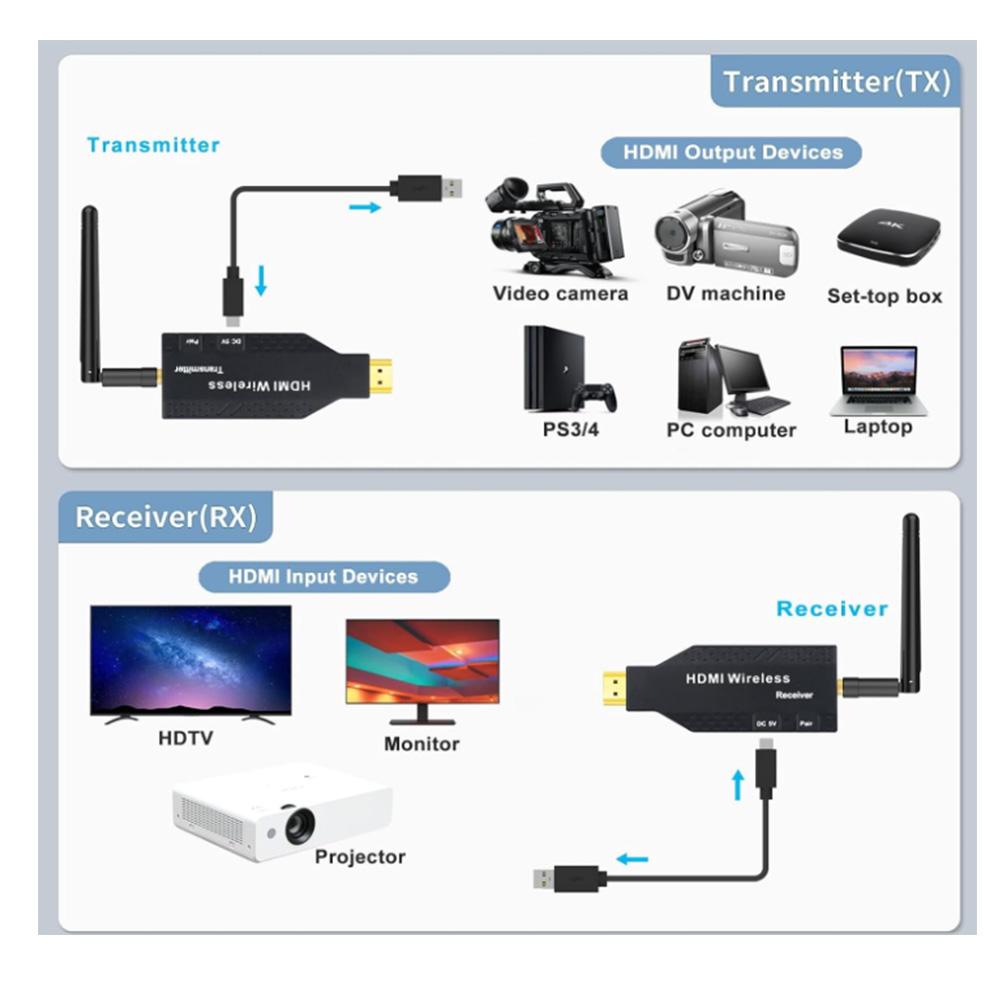

Dual-Component Setup: 1x Wireless Transmitter (TX) + 1x Wireless Receiver (RX) |
| Signal Bandwidth |
5 GHz High-Speed Dual-Frequency wireless connection bandwidth |
| Max Transmission Distance |
Up to 50 Meters (164 Feet) open space Line-of-Sight transmission |
| Video Resolution Cap |
Full HD (FHD) 1920 × 1080 Pixels @ 60Hz frequency output |
| Local Monitoring |
1x Local HDMI Loop-Out port on the Transmitter (TX) panel chassis |
| Audio Channel Depth |
Uncompressed LPCM 2.0 digital audio synchronization stream |
| Latencies Frequency |
Ultra-low real-time transmission lag rated under ≤ 100-120 milliseconds |
| Physical Enclosure |
Scratch-resistant Aluminum Alloy shell with dual directional external antennas |
| System Drivers |
100% Driver-Free architectural layout (Instant Plug-and-Play setup) |
| Power Requirements |
Dual 5V / 1A Micro-USB or USB-C inputs (Cables included inside the box) |
