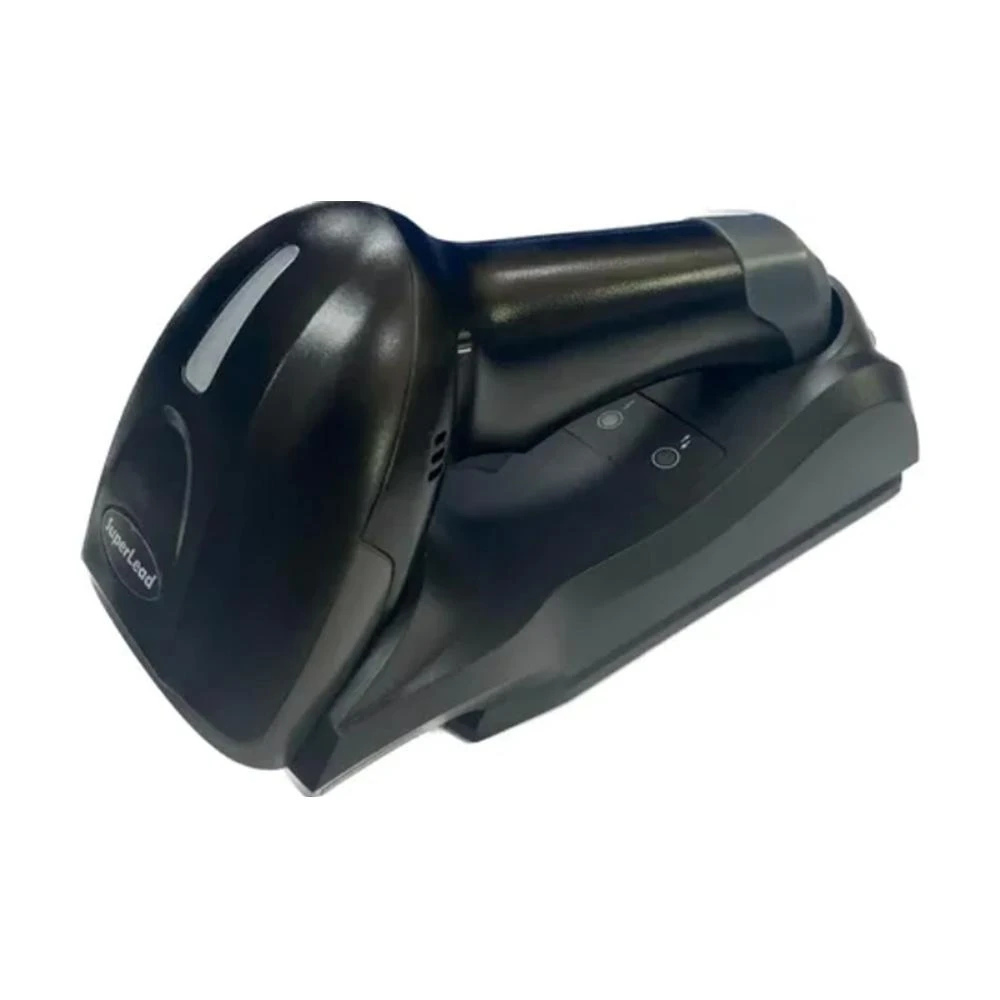

SuperLead 5203 2D Handheld Handsfree Barcode Scanner

SKU: SL-5203-USB
$ 145.00
Available in stock

The SuperLead 5203 is a professional 1D/2D wired handheld barcode scanner utilizing an advanced 0.3-megapixel global shutter camera sensor (640×480 resolution) to rapidly capture codes from paper and high-glare cellphone screens. Featuring three integrated software working profiles (normal, smartphone screen optimization, and fast-moving motion tolerance up to 2m/s), it leverages a dual triangular LED aiming matrix for immediate point-and-shoot targeting. The chassis boasts an IP54 protective level against dust and moisture alongside a rugged 1.5-meter drop resistance framework.

1
Ask about this product
Description

The SuperLead 5203 2D Handheld Handsfree Barcode Scanner—globally tracked by the manufacturer under the structural model number 5203 —is a high-performance imaging code scanning gun. Built with an advanced global shutter camera chip, it provides high-speed automated decoding optimized for aggressive retail and logistics workflows.

 Quick Specification :
Feature Category Key Technical Data Point

Model & Core SKUs Brand Model: SuperLead 5203 Series | SKUs: SL-5203-USB (Wired) / 5203BT (Bluetooth)

Sensor Technology 0.3-Megapixel Global Shutter Area Imager (640 × 480 pixel CMOS grid)

Motion Tolerance High-velocity tracking mechanism adjusting up to 2 Meters/Second (2m/s)

Aiming & Light Source Dual Triangular 617nm LED Aimer + 625nm LED operational illumination

2D Symbologies QR Code, MicroQR, Data Matrix (ECC200), PDF417, MicroPDF417, Aztec, Hanxin

1D Symbologies UPC/EAN, Code 128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5

Minimal Resolution High-density scanning accuracy down to ≥ 3.13 mil limits

Operational Modes 3-Way: Normal mode, Mobile Phone Screen mode, Fast Moving mode

Chassis Shielding IP54 Dust-tight & Splash-proof certification standard

Drop/Impact Rating Designed to survive multiple structural 1.5m (5ft) drops onto concrete

Interface Ports Multi-Interface: Reversible USB (HID Keyboard / Virtual COM) and RS232 Serial

Physical Stature Compact shell profile: 170 × 70 × 95 mm | Ultra-lightweight build at 126g
